Application Overview
Sensitron designs products for a wide array of markets including commercial aerospace, space, defense, medical and other hi reliability applications. Sensitron can design the optimal solution for your application.
Focus Products

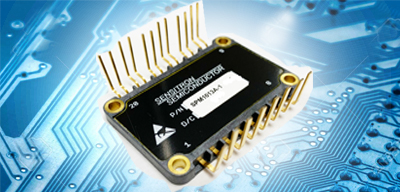

Lightweight SiC & IGBT Power Modules

  • Light weight, low profile electrically isolated package
  • SiC FET Bridges up to 1200V/90A
  • IGBT Bridges up to 600V/75A
  • High temperature plastic shell construction
  • -55oC to 175oC
  • Part Number: SPM1 Series
Learn More

SuperClamp TVS

  • High power precision protection under 40V
  • 100% tested to single pulse of 120A for 100millisec
  • Designed for safe paralleling
  • LRUs containing up to 3 SuperClamps in IP67 plastic enclosures are available
  • Part Number: SCP-5282-4, SCP-5282-9, SCP-5282-36
Learn More

Protection for HV Relay Contacts

  • Automatic activation of external contactor
  • Low power consumption (0.5W typical)
  • Capacitor bank pre-charge current limiting - Up to 40A surge current at 300V
  • Built-in 500V clamp, in/out, for suppressing inductive flyback
  • Part Number: SCC020D300

Learn More
Latest News

Sensitron Designed High Voltage Diode Stacks that are Smaller than Competition!

The SHV Series of high voltage bridge stacks are in a lightweight, low stress package. Available up to 15kV with low thermal resistance and insulation resistance to 10GΩ at 20kV. SiC versions are currently in development.
more »March 2024

New! Radiation Tolerant DC Load Switch with Current Telemetry

Sensitron has designed a non-hermetic 40V, 30A radiation tolerant DC load switch module with 100mV/A output current telemetry. The baseless power chip on board package design features low inductance, superior thermal performance, and low conduction loss. This device is a completely self-contained power module that can be used in various power applications. Contact us for samples today!
more »December 2023

New! SiC Rectifier- Outperforms JANTX1N6631!

Sensitron has designed a silicon carbide rectifier diode that is a drop-in replacement for JANTX1N6631 and outperforms the MIL-PRF-19500/590 series. This 2 Amp 1200 Volt SiC rectifier diode is screened to JANTX level. The thru hole package of this device is compatible with an A body rectifier PCB layout and features hot solder dipped leads.
more »November 2023

MIL-STD-1275 & DO-160 Lightning Strike Protection- a Complete Solution

Sensitron’s latest MIL-STD-1275 TVS modules include a surface mount version for use in military ground vehicle load dumps, “jump starting”, and lightning strike protection applications.
more »September 2023

350V, 20A GaN Half Bridge IPM

Sensitron has recently developed a GaN half bridge with an integrated gate drive using the latest generation of GaN FETs. The ultra small, lightweight package (1.10" x 0.70" x 0.14") uses power flip chip on board with topside cooling which allows for optimal thermal performance and high power density.
more »July 2023

High Density 1200V 60A SiC Power Module

Designed using the latest generation of SiC FETs, Sensitron has developed the industry’s first SiC power module with an integrated gate drive. This conduction cooled low weight (1.1 oz) and low profile (0.37 in) module simplifies implementation in high speed power switching environments.
more »May 2023
