High Power Rectifier Bridge Capabilities

Sensitron offers a wide array of specialized high power rectifer bridges,ideal for high power prime rectification applications. Sensitron is one of the leading suppliers of high reliability components used in commercial aerospace, defense, space, medical and heavy duty industrial applications including down-hole drilling. Contact us today to design your application.

Three Phase Full Wave Bridge Rectifiers for Space, Aircraft, Vehicle, Harsh Environments, Unique Outlines

Features/Benefits:
  • Schottky up to 200V
  • Conventional rectifiers up to 1200V – ultrafast, fast, & general purpose
  • SiC Schottky bridges up to 2500V

Three Phase Bridge Rectifier Assembly with Fuse

Features/Benefits:
  • Isolated base plate: 1500V
  • Compact package, low weight
  • Excellent thermal performance
  • Safety feature: Built-in fuse in each AC leg to fail open under fault.

High Power Oil Cooled Three Phase Rectifier

Features/Benefits:
  • 600V, 300A
  • Excellent thermal performance
  • Flexible design configuration
  • Space-saving (3"L x 2"W x 1"H)
  • High-efficiency heat sink

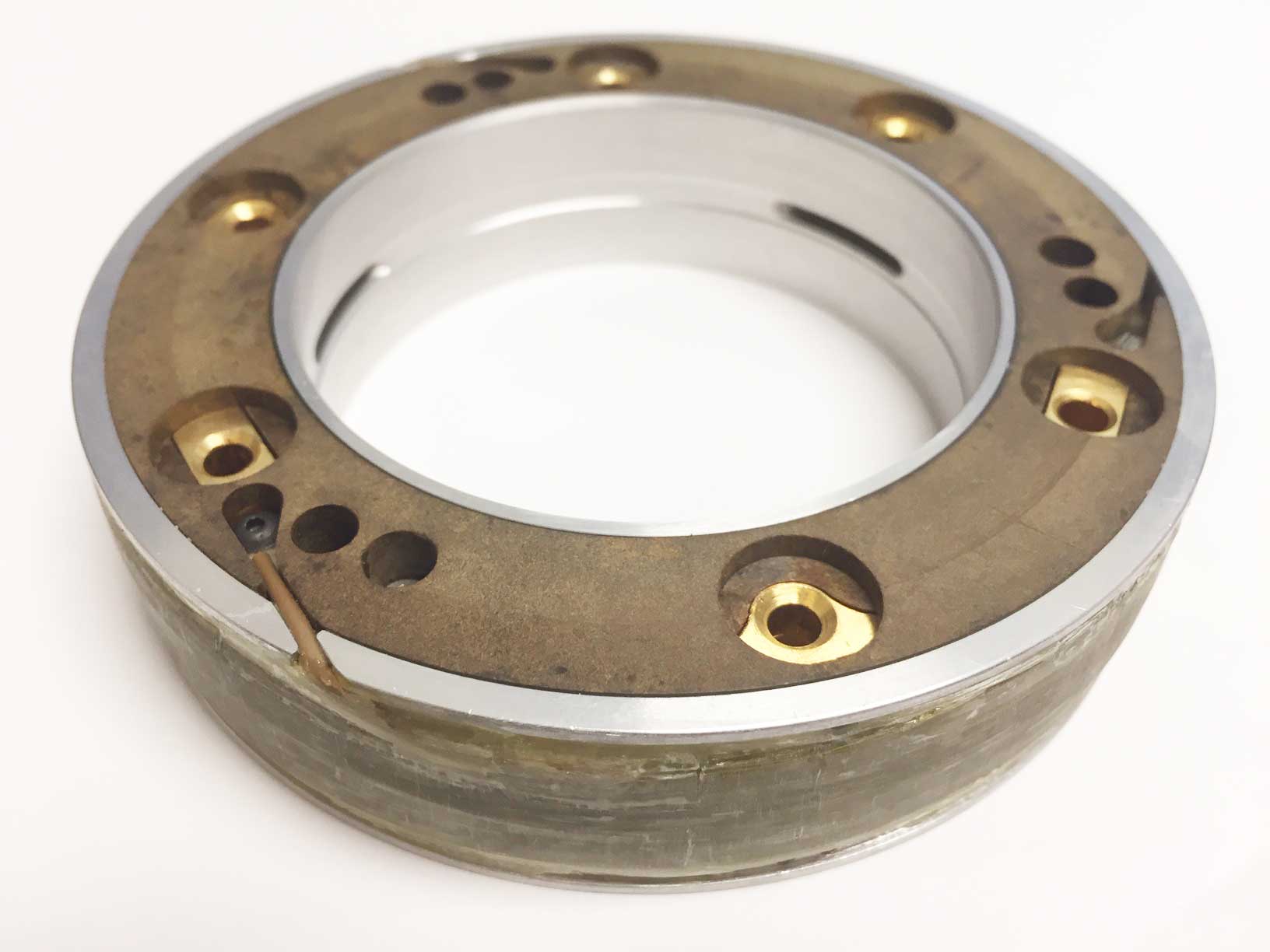

Rotating Rectifier Assemblies

Description

High speed AC-DC power conversion for Aerospace and Defense applications

Features/Benefits:
  • Designed to 27,500 RPM
  • Mechanical rigidity up to 35,000 RPM
  • Max operating temperature: 175°C
  • Max rating:  1000 V, 120 A
  • Type of rectifier: Standard / Fast
  • Environment: Compatible to oil and other airborne fluids
  • Dimensions: Available in 1” to 4”
