Linear Voltage Regulators

Part Number : SHD526174


Positive Fixed, Low drop out, 1.5 AMP REGULATOR



FEATURES :
  • ISOLATED HERMETIC PACKAGE
  • SIMILAR TO INDUSTRY TYPE LT1086M
  • CUSTOM VOLTAGES AVAILABLE (CONTACT FACTORY)

ELECTRICAL CHARACTERISTICS : (All parameters are at TA = 25°C unless otherwise specified)
PARAMETER CONDITIONS MIN MAX UNITS
Output Voltage +3 V
Current Limit 1.5 A

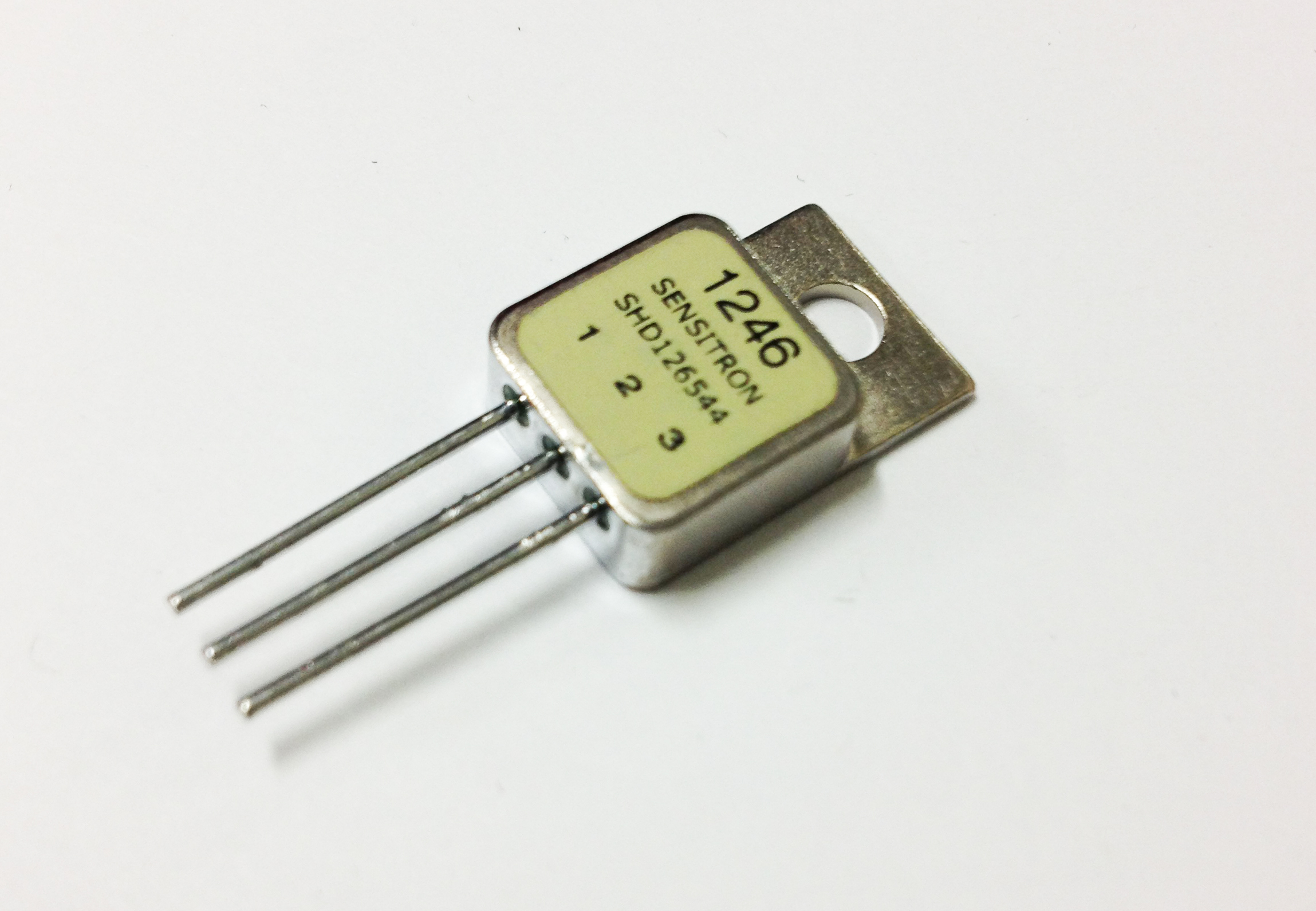

MECHANICAL DIMENSIONS: inches/mm TO-257
PINOUT TABLE : (All parameters are at TA = 25°C unless otherwise specified)
TYPE PIN 1 PIN 2 PIN 3
TO-257, 1.5A Regulator, Positive Fixed I G O
Alternate pinouts, packages, and lead bends available. Contact factory.
