ELECTRICAL CHARACTERISTICS PER SiC LEG
Tj 25°C (UNLESS OTHERWISE SPECIFIED)| SYMBOL | PARAMETER | MIN | TYP | MAX | UNIT |
|---|---|---|---|---|---|
| BVCES | Collector to Emitter Breakdown Voltage | 900 | - | - | V |
| IC | Continuous Collector Current | - | - | 90 | A |
THERMAL AND MECHANICAL CHARACTERISTICS
| SYMBOL | PARAMETER | MIN | TYP | MAX | UNIT |
|---|---|---|---|---|---|
| RθJB_I | SiC Junction-to- Base Plate Thermal Resistance Per Leg | - | - | .30 | °C/W |
| TJ | Operating Junction Temperature | -55 | - | 150 | °C |
| TSTG | Storage Temperature | -55 | - | 150 | °C |

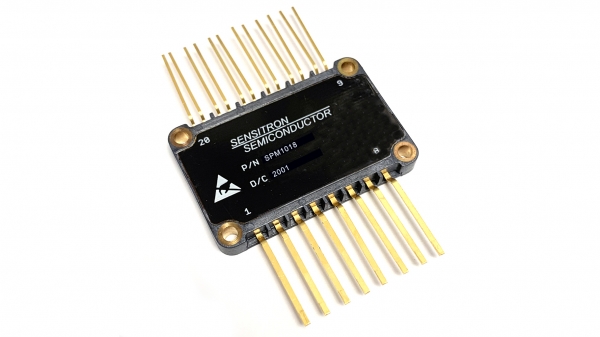

Package type : FP3-20L
